1 Available space Optional
Enter the wall area or vertical clearance the array needs to fit within — we'll suggest the best-fitting screen combinations.
2 Display configuration
Commercial LFD displays (Samsung, TCL, Sony)
Screens are tiled horizontally in a single row
3 Mount type
Wall = standard VESA wall mount · Ceiling = suspended pole mount

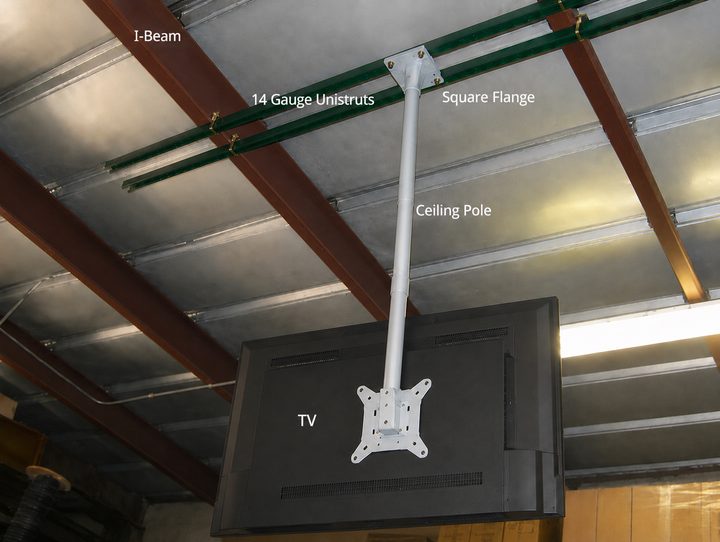

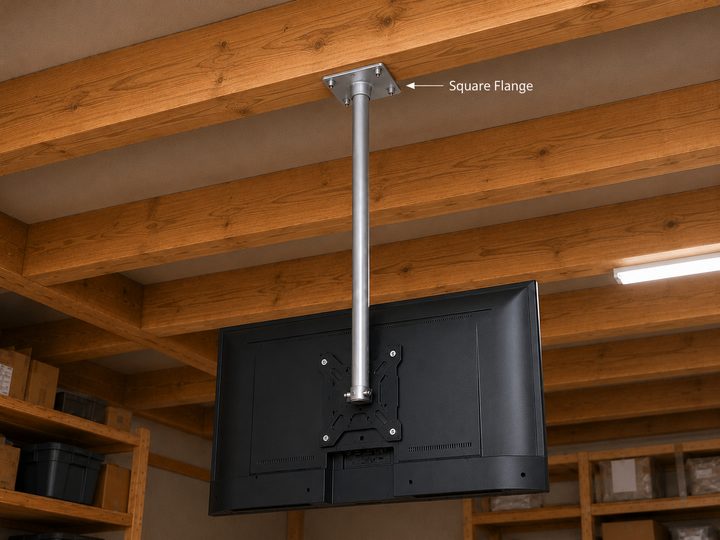

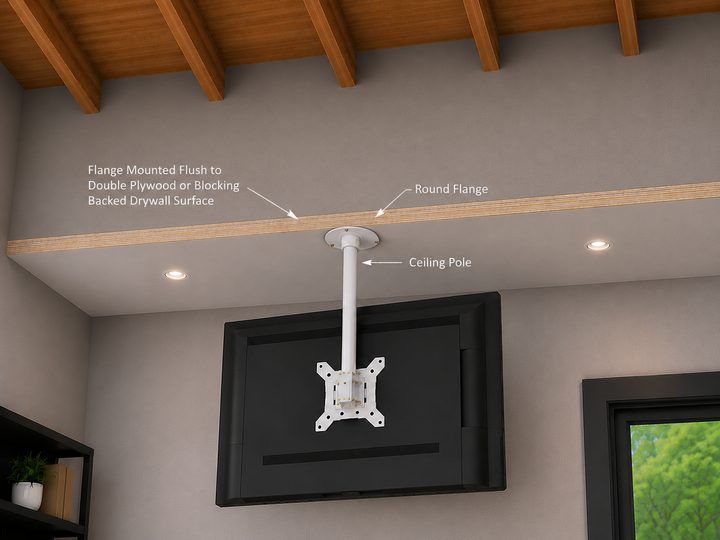

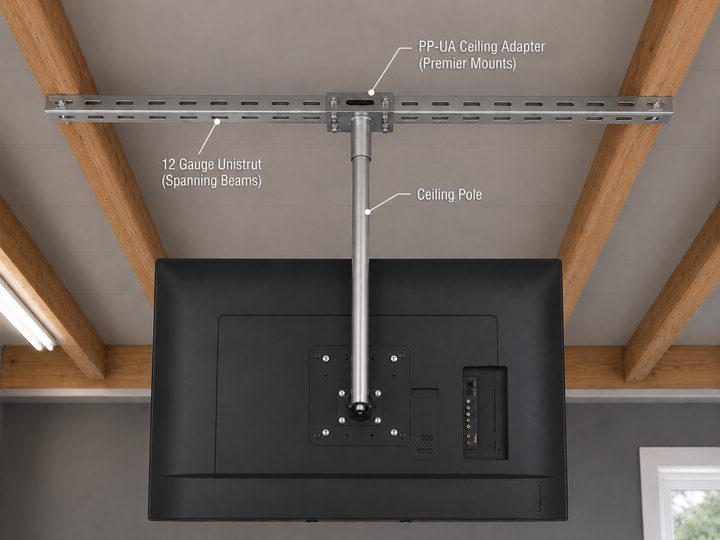

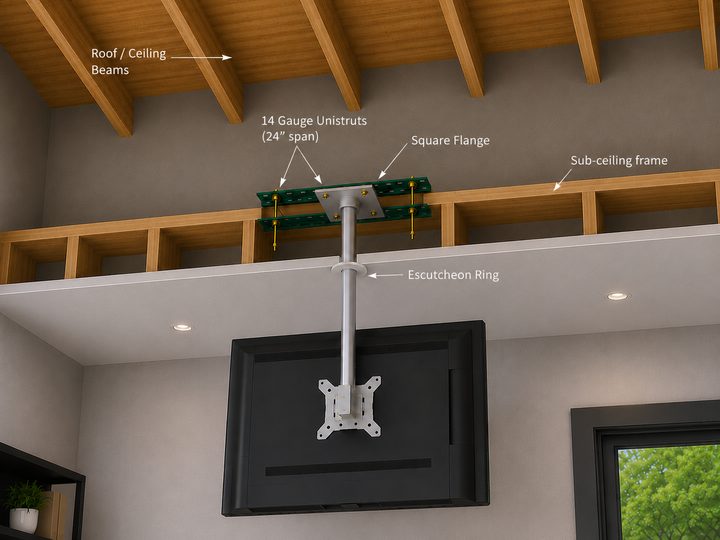

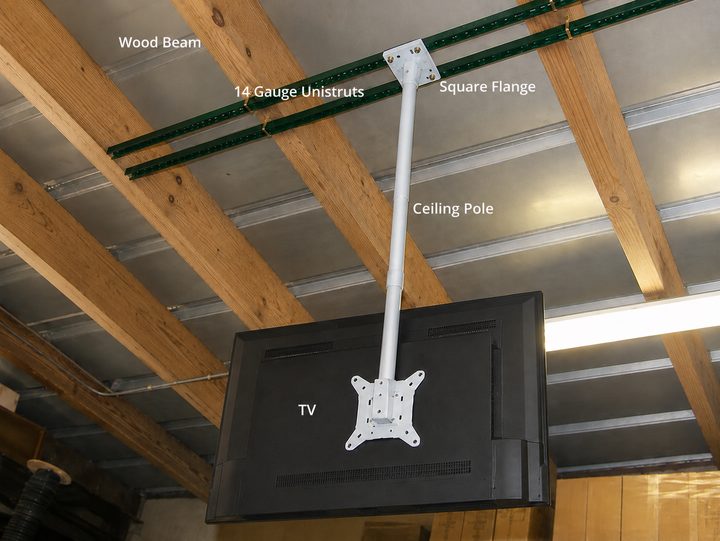

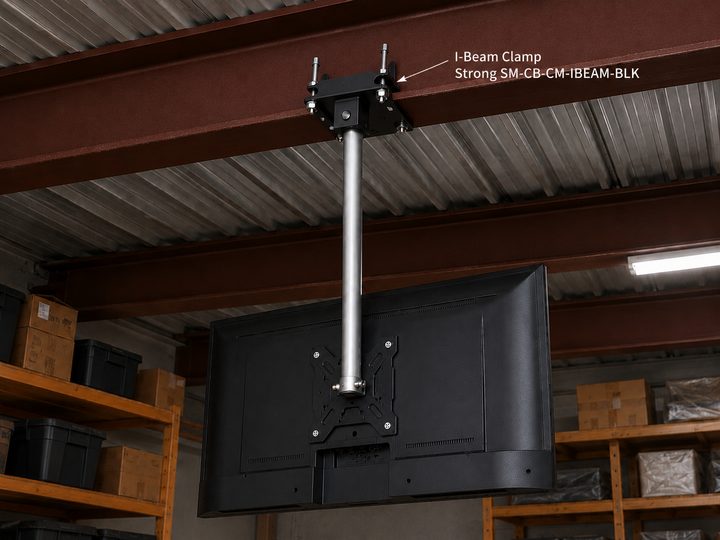

Ceiling mount — Required measurements
1
Floor to Mounting SurfaceHeight to the structural surface where the pole attaches.
2

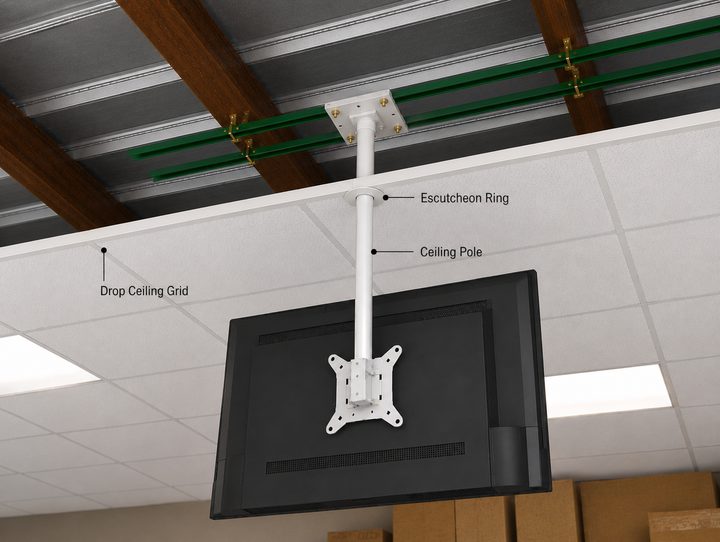

Floor to CeilingOPTIONALOnly fill in if a drop ceiling sits below the mounting surface.
3
Head ClearanceFloor to bottom edge of screen. 80" minimum per OSHA.
Height to structural surface where the pole attaches (inches)
Only fill in if a drop ceiling sits below the structural mounting surface
80" minimum is the standard OSHA head clearance
✓ Results
i
Note: 1.5" minimum clearance between the top edge of screen and the ceiling is recommended.
Overall array dimensions
Landscape
— × —in
In feet
— × —ft
Per-screen dimensions
— × —in
Configuration SKU
Minimum pole length
—in
